Working in a cold British workshop, the team prepares to replace the motorcycle clutch and handle a small fuel tank leak. They have already soaked the new clutch plates in clean oil and gathered tools for the job. Despite the winter chill, they plan to complete the clutch installation, check the tank for leaks, and run a short road test if conditions allow.
As they work, they take time to explain how the clutch system functions and how to check for possible issues with gears or cables. The process includes cleaning the metal plates carefully, keeping them organized, and ensuring proper reassembly. Their focus remains on doing the job correctly and sharing useful repair tips that help others understand each step.
Key Takeaways
- The clutch replacement requires preparation and careful handling of each part.
- Diagnosing gear and clutch issues helps prevent unnecessary replacements.
- Attention to detail and good maintenance habits lead to safer, smoother rides.
Project Overview and Objectives
The team focuses on repairing and testing a motorcycle clutch system while addressing a minor fuel tank issue. The work takes place during winter in the UK, so cold conditions influence how long certain parts, like the tank, must dry.
Main tasks include:
- Preparing and soaking the clutch plates in clean oil for about ten minutes before installation.
- Inspecting and cleaning each plate to remove rust without bending or damaging them.
- Fixing a small pinhole leak in the fuel tank caused by earlier welding.
The objective is to install the new clutch, confirm smooth engagement and release between plates, and ensure the bike drives correctly. The team also plans to review how the clutch mechanism works and test the finished setup on the road once weather allows.
| Component | Purpose | Notes |
|---|---|---|
| Clutch plates | Transfer power from engine to transmission | Must stay clean and free of rust |
| Springs | Apply pressure to keep plates engaged | Release when clutch lever is pulled |
| Fuel tank | Store and feed fuel to engine | Needs inspection for leaks before testing |
Safety steps such as thread-locking bolts, checking tire pressure, and keeping parts lubricated form part of the standard procedure. The work aims to have the motorcycle ready for a test ride and confirm all systems operate as expected.
Clutch Replacement Process
Setup and Needed Tools
They begin by making sure the workspace is clear and the bike is stable. Basic tools such as Allen keys, a socket set, tissue, and a wire wheel for cleaning are ready on the bench. They check for leaks around the fuel tank and purge any leftover petrol to keep the area safe.
A quick table helps track the materials:
| Item | Purpose |
|---|---|
| Clean engine oil | Soak new clutch plates |
| Wire wheel | Remove rust from metal plates |
| Allen keys & sockets | Remove and refit clutch cover |
| Tissue or rags | Clean parts and excess oil |
Taking Out the Existing Clutch

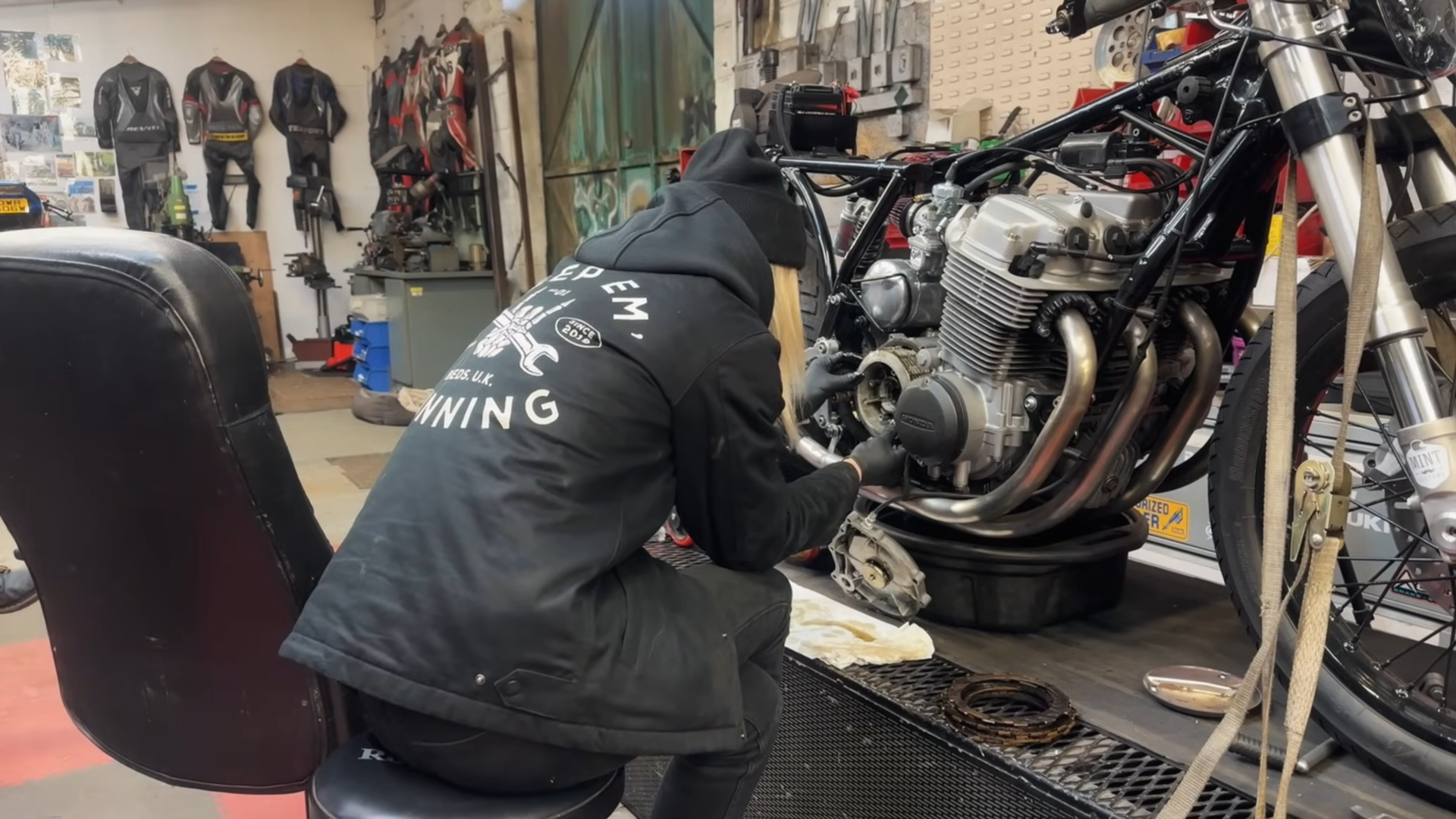

They carefully remove the clutch cover, keeping each bolt and washer in order. Each clutch plate comes out one by one, cleaned lightly to avoid bending or damaging the surface. They describe cleaning as “a bit of a pain” but stress it’s necessary for a smooth reassembly.
The speaker explains that the clutch pack acts like a combination of brake pads and discs. Springs hold the plates together to transfer power, and pressing the clutch lever separates them, cutting the drive to the output shaft.
Key reminders:
- Keep parts in order.
- Clean gently with minimal pressure.
- Do not lose any spring or washer.
Soaking and Fitting the New Clutch
Before installation, the new clutch plates soak in clean engine oil for about ten minutes. Once ready, they install the plates in the original order, checking that each plate seats properly. The bolts are tightened evenly to spread the load.
They double-check alignment marks and tighten bolts opposite each other to prevent strain on the cover. The clutch lever is tested after tightening to confirm smooth movement and equal spring tension.
Diagnosing Clutch and Gear Issues
Spotting Slippage and Hard Movement
When the clutch slips or feels stiff, it often signals a problem with how the plates engage. A slipping clutch allows the engine to rev without proper drive, while stiffness can make gear changes rough or delayed. Before assuming the clutch is worn, riders should also check for tight or misadjusted cables.
Quick checks:
- Test lever free play.
- Listen for grinding when shifting.
- Note if the bike jerks or surges under load.
Measuring Clutch Pack Thickness
The clutch pack must have the right height for smooth operation. To check it, remove the plates and measure the full stack with a caliper or micrometer. Compare the reading to the specification for that engine model.
| Step | Action | Purpose |
|---|---|---|
| 1 | Remove each plate in order | Keep reassembly accurate |
| 2 | Measure clean, dry plates | Ensure true reading |
| 3 | Compare to standard | Confirm wear or usability |
If the measurement matches the requirement, the clutch is likely still in good shape.
Finding Hidden Gear Faults
Sometimes the clutch works fine, and the cause lies deeper in the gearbox. Worn gears, bent shift forks, or rust on the plates can all affect performance. Cleaning each plate gently with a wire wheel removes rust without bending the metal.
Possible causes of gear issues:
- Low lubrication leading to friction.
- Improper assembly causing misalignment.
- Hidden corrosion locking plates together.
Checking these areas helps identify mechanical faults before replacing parts that still function well.
Understanding How a Clutch Works
Clutch and Brake Setup
A clutch works much like a brake system, but instead of stopping motion, it helps control when power flows from the engine to the wheels. Inside the clutch are several plates stacked together, known as a clutch pack. Some of these plates connect to the engine, while others connect to the transmission.
When the rider pulls the clutch lever, the plates separate slightly, which stops engine power from reaching the wheel. Releasing the lever lets the plates press back together, allowing the power to move through again. The design is simple but requires precise movement to work smoothly.
| Action | What Happens | Result |
|---|---|---|
| Clutch pulled in | Plates separate | Power flow stops |
| Clutch released | Plates grip tightly | Power transfers to the wheel |
Function of Clutch Springs
Clutch springs apply pressure that keeps the plates pressed together during normal riding. When the lever is pulled, that pressure releases just enough for the plates to slip apart. The springs must have consistent tension so the clutch can engage and disengage properly.
A weak or worn spring can cause slipping, while one that’s too stiff can make the clutch hard to pull. Each spring should be checked carefully, cleaned, and placed back in its proper order when reinstalling the clutch.
How Power Moves Through the System
When engaged, the clutch plates lock together, allowing the engine’s rotation to move through the transmission to the rear wheel. The strength of that grip controls how smoothly power moves forward.
If the clutch plates stick from rust or wear, the connection can fail, causing power loss or jerky movement. Keeping the plates clean, smooth, and evenly aligned helps ensure dependable power transfer every time the clutch is used.
Cleaning and Maintaining Clutch Components
Removing Surface Rust
Rust can cause clutch plates to stick together. To clean them safely, use a wire wheel or fine abrasive pad with light pressure. Avoid pressing too hard to prevent bending the plates. Each piece should be cleaned one at a time and placed in order on a clean surface to keep track of their sequence.
| Tool | Purpose | Note |
|---|---|---|
| Wire wheel | Light rust removal | Use gently to prevent damage |
| Cloth and oil | Wipe residual dust | Keeps surfaces clean and smooth |
| Air line | Drying plates | Removes leftover moisture |
Reducing Plate Wear
To reduce wear, soak the clutch plates in clean oil for about 10 minutes before fitting them. This helps prevent dry friction during startup. Avoid using dirty or old oil, since contaminants can scratch or glaze the surfaces. Handle each plate carefully and never force them apart when cleaning.
Tips:
- Always inspect the plate surfaces for uneven marks.
- Replace any plate that looks warped or worn flat.
- Keep assembly areas free of grit and metal dust.
Keeping Plate Sequence Correct
Maintaining the right order of clutch plates ensures proper function. Stack and label each friction and steel plate as removed, cleaning them one by one rather than all at once. Mixing the order can cause slipping or uneven engagement.
Simple process:
- Remove one plate at a time.
- Clean and oil it.
- Place it back in order on a clean cloth.
Taking time to organize and handle the parts properly prevents performance issues once the clutch is reassembled.
Fuel Tank Leak Troubleshooting
Finding Small Leaks and Thin Spots
He noticed a light fuel leak near the spot where he sealed off the old fuel sender. The weld had a small hole, too tiny to see at first. To find leaks like this, he used air pressure and checked for bubbles, which showed the exact location of the pinhole. A quick pressure test before sealing could have caught it sooner.
| Common Leak Signs | How to Check |
|---|---|
| Fuel smell or damp area | Wipe clean, observe after a few minutes |
| Visible rust or stain | Lightly sand and inspect the surface |
| Sound of air escaping when testing | Recheck welds and sealing points |
Emptying the Tank and Staying Safe
He spent nearly two weeks blowing air through the tank to remove leftover fuel. Never weld or grind until all vapors are gone. Even a small amount of gasoline fumes can ignite. He used an airline to dry the tank completely and worked in a space with good airflow.
Safety checklist:
- Drain all fuel and leave the cap open for ventilation.
- Keep fire and sparks far away.
- Wear gloves and eye protection.
- Work outdoors or in a clean, well-ventilated area.
Fixing and Checking the Seal
After the tank was dry, he rewelded the pinhole and checked his work again with low air pressure. Once no bubbles appeared and no smell of fuel remained, the repair was complete. He made sure the tank stayed clean and smooth, avoiding damage or bending the thin metal during cleaning. Testing the tank twice gave him confidence the leak would not return.
Workshop Tips for Cold Weather
Keeping Warm During Tasks
Cold air moves quickly through the workspace, so workers should pick a spot out of the wind whenever possible. Standing to the side of a doorway or draft can make a clear difference. Wearing insulated gloves helps keep hands flexible for detail work. A small heater or warm drink nearby can also help maintain focus.
Arranging Tools and Components
Keeping parts in clear order avoids confusion when reassembling items like clutches or tanks. He recommends setting cleaned parts in a straight line or numbered order on a bench or table. Using small trays, boxes, or labels helps avoid mixing hardware. The goal is to keep every piece consistent with its original position.
| Tip | Purpose |
|---|---|
| Label each bolt location | Prevents misplacement |
| Use trays or bags | Keeps small parts secure |
| Clean and sort one part at a time | Reduces assembly errors |
Safety Steps to Follow
Cold conditions can make metal brittle and surfaces slick. Workers should tighten bolts evenly to spread pressure and prevent cracks. Testing for leaks or weak welds before fueling avoids major hazards. Eye protection and gloves are important, especially when using tools like wire wheels to remove rust. Keeping attention on safe handling protects both the mechanic and the bike.
Essential Motorcycle Maintenance Guidelines
Proper Use of Thread Locking Compound
Threadlocker helps keep bolts from loosening due to engine vibration. Riders should apply a small, even amount on threads before tightening bolts. Too much product can cause difficulty during removal, so using only what is needed gives the best results.
Tip: Tighten bolts in opposite or crisscross patterns to spread pressure evenly and prevent warping.
Checking Tire Air Levels
Tires lose pressure naturally over time, especially in cold weather. Checking pressure with a reliable gauge before each ride helps maintain control and even tire wear.
| Tire Type | Recommended Check Frequency |
|---|---|
| Front Tire | Once a week |
| Rear Tire | Once a week |
Keep pressures within the manufacturer’s range listed on the bike or in the manual.
Watching Brake Pad Condition
Brake pads must meet a minimum thickness to work safely. Riders should inspect both pads regularly for smooth wear and clean any dust using a soft brush. Uneven wear often means the calipers need service or cleaning.
Warning: Never ride once the pad material reaches the metal backing plate.
Adjusting Drive Chain Tension
The chain should have a small amount of slack—too tight causes wear, while too loose reduces control. Adjust it evenly on both sides using the axle blocks and alignment marks.
Steps:
- Check slack halfway along the bottom chain run.
- Loosen the axle nut slightly.
- Turn adjusters equally until the slack reaches the correct range.
- Recheck alignment before tightening.
Value of Proper Lubrication
Lubrication keeps engine and moving parts from binding or overheating. Chain oil, engine oil, and grease for pivots or cables should be clean and replaced often.
Key Lubrication Points:
- Drive chain and sprockets
- Clutch and brake levers
- Cable ends and pivot bolts
Clean parts before adding new lubricant to prevent grit from wearing surfaces faster.
Reassembly and Final Adjustments
Correct Order for Tightening Bolts
They followed a cross-pattern when tightening the bolts to spread the pressure evenly across the clutch cover. Each bolt was nipped gently, then tightened in small steps to avoid overloading one side. He used long-owned tools and checked each bolt twice to make sure none were loose.
Tip: Work in opposite pairs so the cover seats flat and prevents leaks.
| Step | Action | Purpose |
|---|---|---|
| 1 | Insert all bolts lightly | Align parts correctly |
| 2 | Tighten in a cross pattern | Distribute pressure evenly |
| 3 | Recheck each bolt | Ensure security |
Labeling and Keeping Track of Parts
He kept all parts in separate containers and labeled the first bolt’s position to avoid confusion. Each cleaned plate was placed in order, one by one, so none were mixed up. Staying organized helped maintain the original sequence of plates and springs during assembly.
Never clean all plates at once or the correct order may be lost.

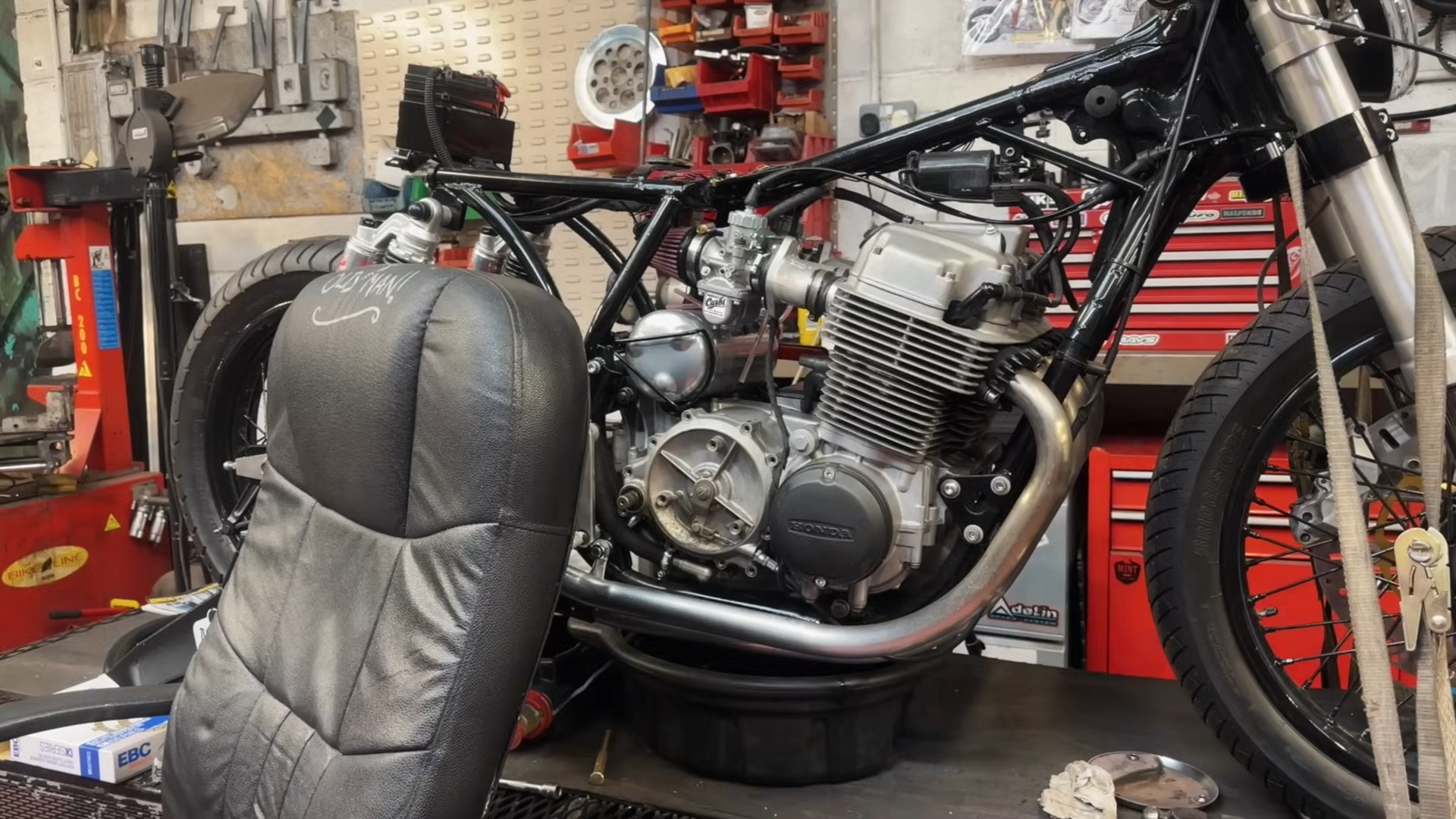

Checks Before Running the Engine
Before testing, they confirmed that all bolts were tight, the clutch stack sat flush, and no fuel leaked from the tank. The tank had been purged of petrol for safety, and tools were cleared from the work area. A quick inspection verified that the cables moved freely and the clutch plates separated smoothly when the lever was pulled.
Once every check passed, the bike was ready for the road test.
Closing Remarks and Upcoming Content
The day wrapped up with the clutch cleaned, tested, and reassembled. The team checked each plate, kept the stacking order precise, and made sure no parts bent or wore unevenly. A few small leaks from the tank reminded them how vital careful welding and pressure testing are before final assembly.
Key Takeaways:
- Always soak new clutch plates in clean oil before fitting.
- Keep track of the plate order during cleaning and reassembly.
- Watch for tank pinholes that can appear after welding or sealing.
They planned to cover more technical details next time, including how to measure clutch pack height and methods to spot wear on drive components. Weather permitting, the next session would also include a quick road test to check performance after the repair.
| Upcoming Focus | Description |
|---|---|
| Clutch Pack Measurement | Step-by-step on checking correct height and wear range |
| Troubleshooting Drive Issues | Identifying if slipping comes from clutch wear or cable tension |
| Road Test | Short ride to confirm smooth gear transitions |
With the tools stored and the workspace cleared, they prepared for the next stage of tuning and testing once the conditions allowed.
